ABS Diagnostic Leads

USED FOR SEMI TRUCKS & TRAILERS These leads can be connected to a multimeter to measure the internal resistance of ABS sensors or voltage leading to the sensors.

Instructions:

SENSOR-SIDE

1. Connect red & black plugs to multimeter
2.  Set multimeter to read resistance
3.  Connect the male lead to the ABS Sensor(coming from the wheel) and measure resistance

CAB-SIDE

1. Connect red & black plugs to multimeter
2. Set multimeter to read voltage
3. Connect the female lead to the Cab-side connector(going towards the wheel) and measure voltage.

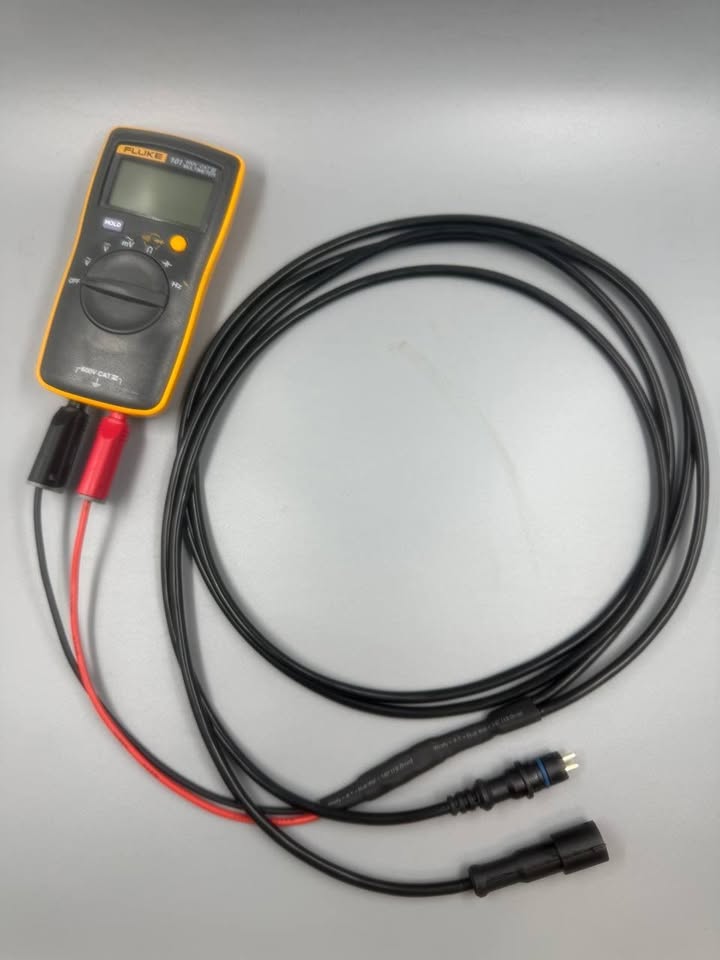

DISCLAIMER: Multimeter pictured is NOT included in this listing and is for demonstration purposes only.
